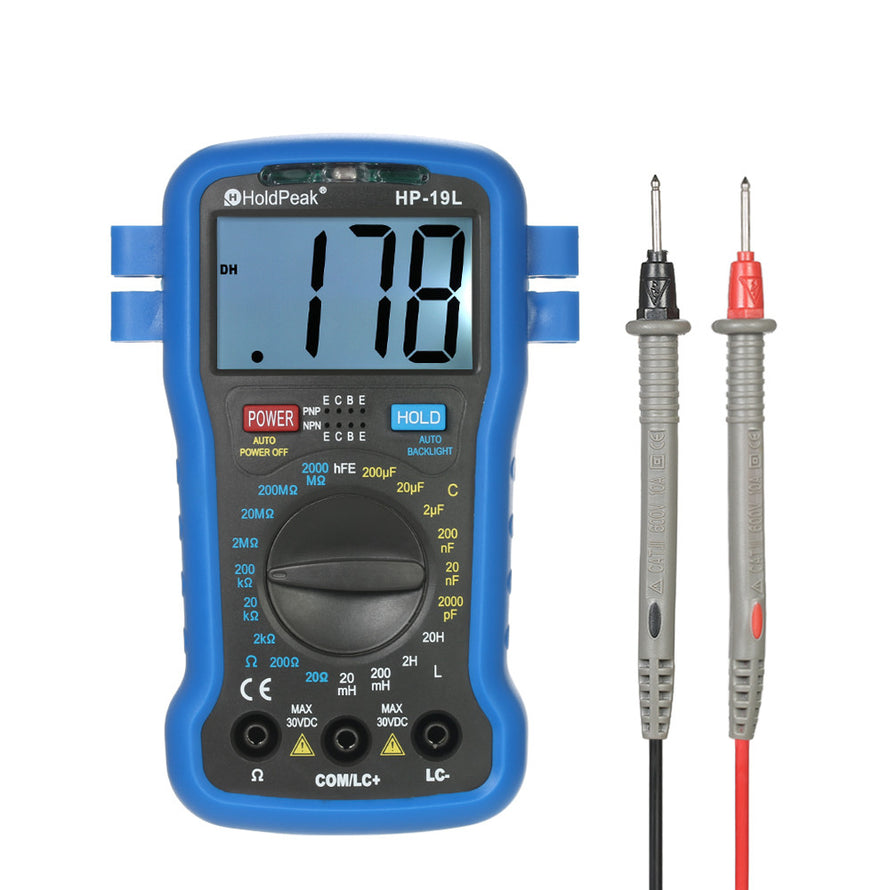

Backlight LCD Digital LCR Multimeter
Accurate digital LCR meter, with 1999 counts digit LCD monitor to offer clear readings.
Designed for measuring resistance, capacitance, inductance, also can test transistor.
Built in CDS sensor to sensor the ambient brightness and control the LCD backlight automatically.
Auto Power Off: it will switch to standby mode automatically after 20mins if there's no operation.
Use the rotary switch to select functions and ranges.
Press HOLD key to lock display value.
With Auto-zero & Auto-polarity functions, Over-range indication & Low battery indication.
The anti-slip cover with test probe slots can protect multimeter and organize probes as well.
Comes with a wrist strap for your convenient carry and operation.
Color: black + blue
Display: 3 1/2 digits LCD Display
Power Supply: 1 * 9V Zinc-carbon battery (not included)
Resistance Range: 20Ω/20Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ
Resistance Resolution: 0.01Ω/0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ/100kΩ/1MΩ
Capacitance Range: 2000pF/20nF/200nF/2μF/20μF/200μF
Capacitance Resolution: 1pF/10pF/100pF/1nF/10nF/0.1μF
Inductance Range: 20mH/20mH/2H/20H
Inductance Resolution: 0.01mH/0.1mH/1mH/10mH
Operating Temperature: 0~40°C
Storage Temperature: -20~60°C
Operating Humidity: Max. 75% RH
Storage Humidity: Max. 80% RH
Item Size: 14.5 * 10 * 3.5cm / 5.7 * 3.9 * 1.4in
Item Weight: 193g / 6.8oz
Package Size: 18 * 12 * 5.8cm / 7.1 * 4.7 * 2.3in
Package Weight: 318g / 11.2oz
1 * LCR Meter
1 * Pair of Test Leads
1 * Wrist Strap
1 * User Manual(English)
