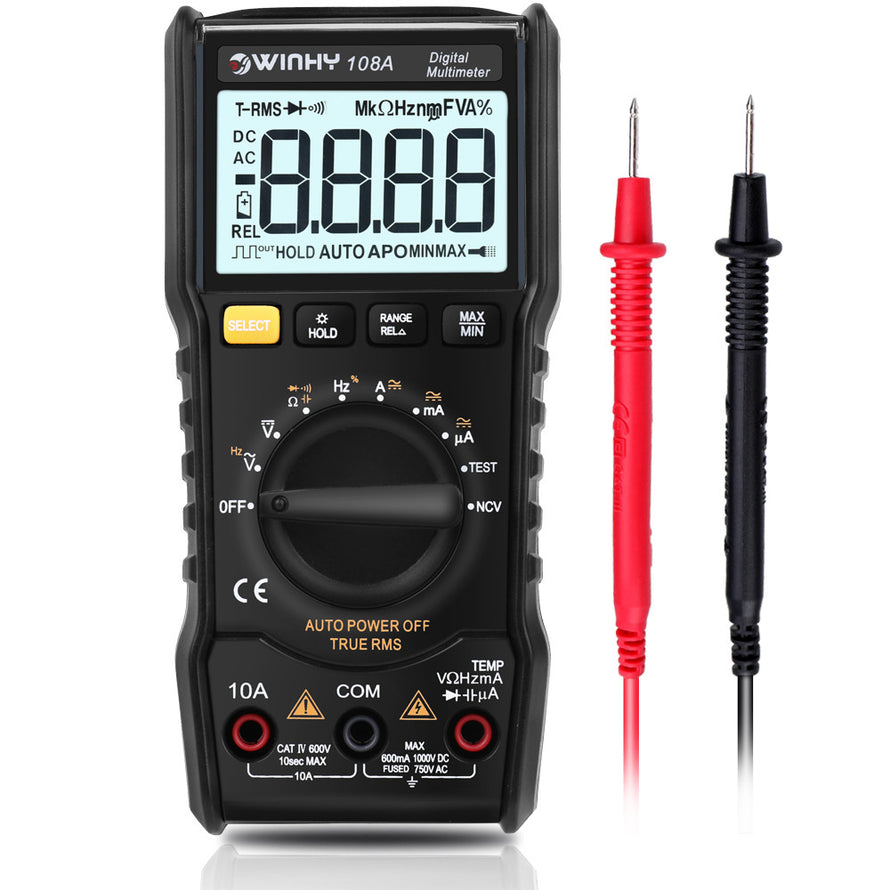

WINHY 108A Full Protection Digital Multimeter Mini Multifunctional Handheld Meter Tools of Electrical Instruments and Apparatus
Now that we have entered the era of intelligence, multi-function digital multimeters have also been replaced by smart ones. This digital multimeter can not only meet the needs of daily life measurement, but also become a professional measurement teaching tool.
6000 counts and multifunction: display of 6000 counts and test of AC / DC voltage and current, diode, resistance, capacitance, frequency.
Full protection: the body is equipped with a shockproof sleeve to prevent the instrument case from being damaged due to falling down, giving the body a full range of protection.
Easy to use and take: designed of compact and light, a bracket on the back for easy handling and placement.
LCD screen with backlight makes reading data clearer and faster.
Booster power supply guarantees ultra-high brightness of backlight even at 2.3V low battery edge.
Brand name: WINHY
Material: PVC plastic
Display: LCD display with backlight, 6000 counts
Range control: auto range
Screen size: 56 * 45mm / 2.2 * 1.8in
Power: 2 * AAA battery (not included)
DC voltage range: 6V/60V/600V/1000V
DC voltage resolution: 0.001V/0.01V/0.1V/1V
AC voltage range: 6V/60V/600V/750V
AC voltage resolution: 0.001V/ 0.01V/0.1V/1V
DC current range: 600μA/6000μA/60mA/600mA
DC current resolution: 0.1μA/1μA/10μA/100μA
AC current range: 600μA/6000μA/60mA/600mA
AC current resolution: 0.1μA/1μA/10μA/100μA
Frequency range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/20MHz
Frequency resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/30mF
Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/11μF/10μF
Function: hold mode, backlight, auto power off, NCV test, frequency test, continuity buzzer test with LCD, over load protection, short-circuit protection, live line test, diode test.
Sampling time: about 3 times/second
NCV detection: ≥2V rms
Working temperature/humidity: 0～40℃, <80%RH
Storage temperature/humidity: -10～60℃, <70%RH
Operating environment: 0～40℃ (32-104℉)
Storage environment: -20～60℃ (-4-140℉)
Item size: Approx. 140 * 67 * 26mm /5.5 * 2.6 * 1.0in
Item weight: 187g / 6.6oz (battery not included)
Package size: 165 * 100 * 50mm / 6.5 * 3.9 * 2.0in
Package weight: 291g / 10.3oz
1 * Digital Multimeter
1 * Test Lead
1 * Use Manual (English)
